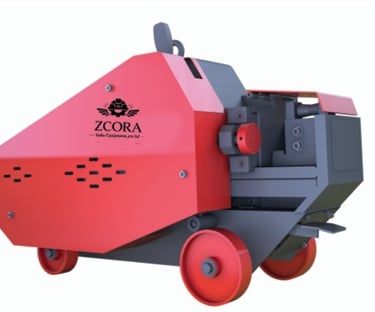

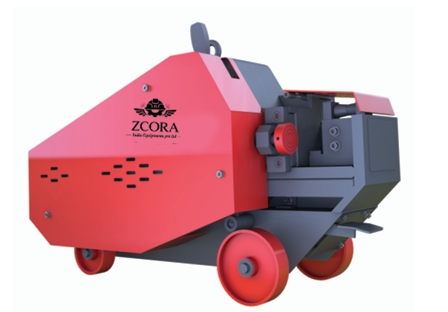

Bar Cutting Machines

A bar cutting machine (also called a rebar cutting machine or TMT bar cutter) is a construction equipment used to cut steel reinforcement bars to required lengths for beams, columns, slabs, and foundations. It improves speed, accuracy, and safety compared to manual cutting

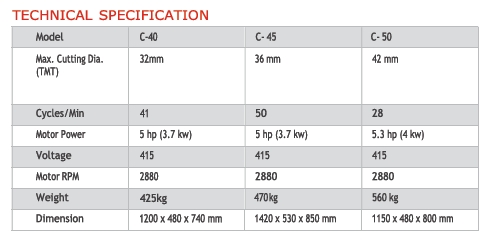

Variants and Specifications

Zcora offers multiple models of its steel bar cutting machine, each built to serve different site needs.

Model C-40

• Cutting Diameter: Plain carbon steel Ø6–28 mm, Grade Rebar Steel Ø32 mm

• Blade Size: 83 × 76 × 26 mm

• Cycles/Min: 32 r/min (5 Hz)

• Motor Power: 415 V / 4 HP

• Voltage: 2880

• Weight: 380 kg

• Dimensions: 1530 × 550 × 750 mm

Model C-45

• Cutting Diameter: Plain carbon steel Ø6–32 mm, Grade Rebar Steel Ø36 mm

• Blade Size: 87 × 87 × 26 mm

• Cycles/Min: 37 r/min (5 Hz)

• Motor Power: 415 V / 5 HP

• Voltage: 2880

• Weight: 420 kg

• Dimensions: 1150 × 480 × 800 mm

Model C-50

• Cutting Diameter: Plain carbon steel Ø6–36 mm, Grade Rebar Steel Ø42 mm

• Blade Size: 95 × 95 × 26 mm

• Cycles/Min: 32 r/min (5 Hz)

• Motor Power: 415 V / 5 HP

• Voltage: 2890

• Weight: 530 kg

• Dimensions: 1530 × 590 × 750 mm
